Appearance

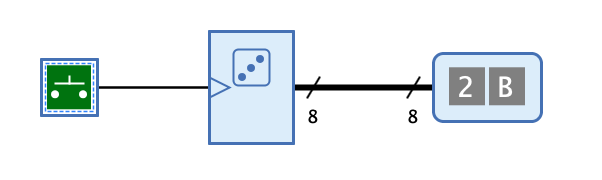

Example random generator

Behavior

The random generator generates a new random number with each rising edge of the clock input.

Pins

Input

The clock input. With a rising edge a new random number is generated.

Output

An n-bit output that outputs the last generated random number.

Attributes

Orientation

The direction in which the output points.

Bit Width

The number of bits that make up the generated random number.
