Bi-directional Splitter

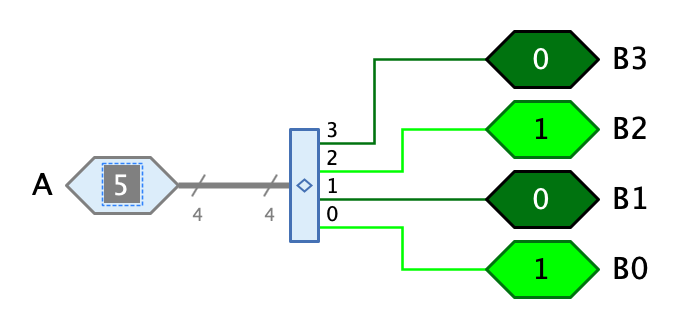

Appearance

Behaviour

The bi-directional splitter combines splitter and combiner in one single component and can therefore forward signals in both directions.

Simulation of circuits containing bi-directional splitters is more time-consuming. Try to avoid them if you can and if simulation speed is a concern.

Pins

All pins of bi-directional splitter are input/output pins.

Properties

See splitter for a description of the various properties.
